Driving type
6*6
Wheelbase(mm)
3775+1400
Max. Speed/(km/h)
75km/h
Usage Scenario
Engineering construction, Logistics transportation

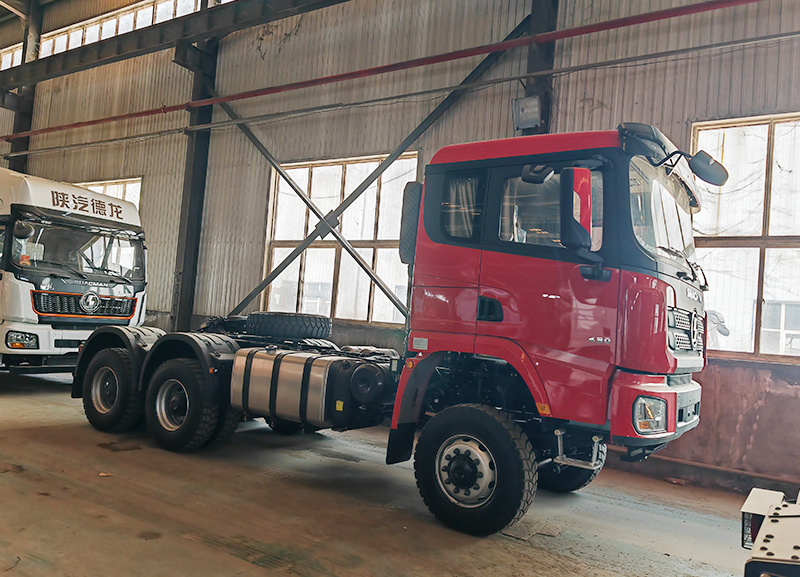

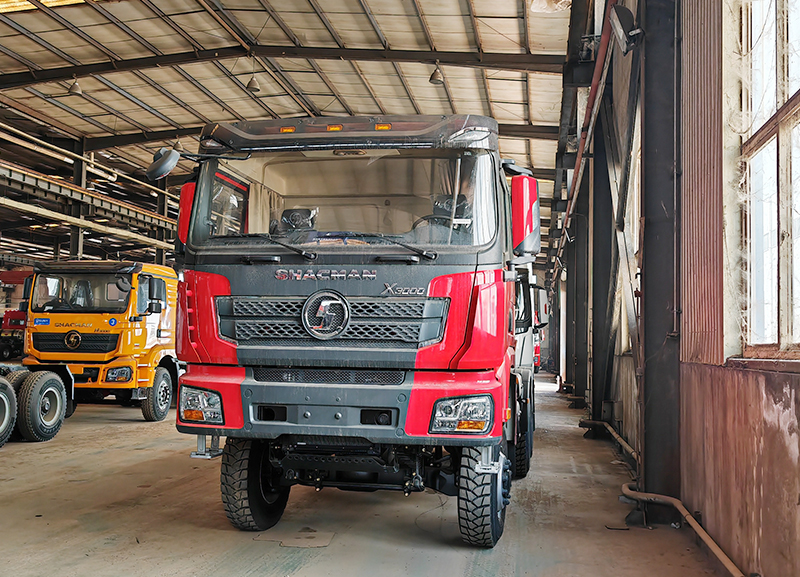

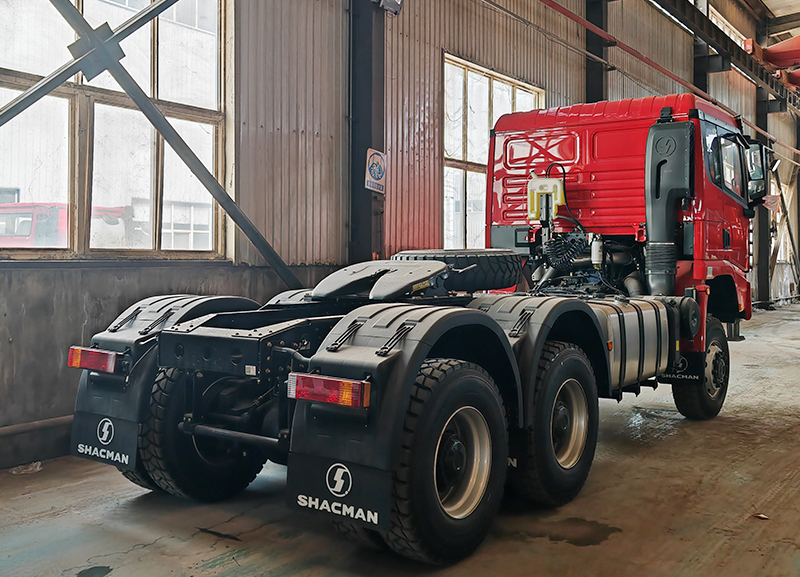

MAIN PARAMETER
| MODEL | SX42585T385 | |
| Driver position | Left Hand | |
| Driving type | 6*6 | |
| Wheelbase/(mm) | 3775+1400 | |
| Max. Speed/(km/h) | 75km/h | |
Engine
| Brand | WEICHAI |
| Model | WP12.375E50 | |
| Emission Standard | EURO V | |
| Rated output power/（PS） | 375HP | |
| Displacement(L) | 11.596L | |
Transmission
| Brand | FAST |
| Model | 12JSD200T-B | |
| Front axle | Brand | HANDE |
| Model | MAN 9T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double reduction driving axle Speed ratio: 4.769 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850x300(8+7) | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding | |
| Fuel tank | 400L Aluminum alloy | |
| Wheels and tires | 315/80R22.5 （10+1） | |
| Brakes | Running brake: Dual circuit compressed air brake | |
| Parking brake: Air discharging with spring control | ||
| Auxiliary brake: Engine exhaust brake | ||
| Cabin | X3000 extended flat top cab without roof deflector tractor vehicle、Aurora white、 electrically controlled automatic constant temperature air conditioning、400L aluminum alloy fuel tank、Jost 50 saddle、domestic clutch、ordinary air filter、domestic steering gear、 multifunctional steering wheel 180Ah maintenance free battery、electric flip、three-level boarding pedal、metal bumper、split mudguard、electric window shaking machine、central control lock (with remote control)、air master seat、electrically heated rearview mirror、 water tank protection grille、four point air suspension、ZQC2000 transfer case、flat mounting plate、daytime running lights、SHACMAN logo、full English logo | |
* Description:
1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 10 working days after advance payment.
