Driving type
4*2
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Driving type
4*2
Wheelbase(mm)
3600
Max. Speed/(km/h)
90km/h
Usage Scenario
Engineering construction, Logistics transportation
MAIN PARAMETER

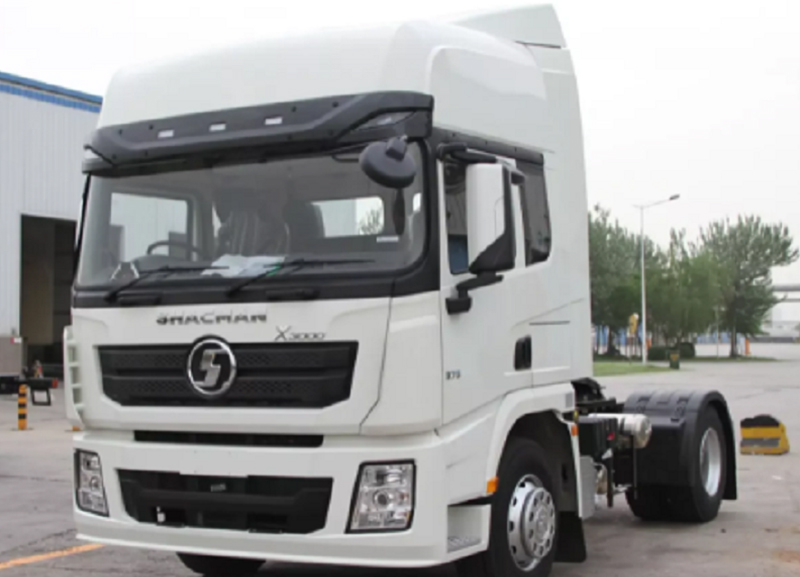

| MODEL | SX41854T361C | |
| Driver position | Left Hand | |
| Driving type | 4*2 | |
| Wheelbase/(mm) | 3600 | |
| Max. Speed/(km/h) | 90km/h | |
Engine
| Brand | CUMMINS |
| Model | ISME 385 30 | |
| Emission Standard | EURO III | |
| Rated output power/（PS） | 283KW/385HP | |
| Displacement(L) | 10.8L | |
Transmission
| Brand | FAST |
| Model | 10JSD180 | |
| Front axle | Brand | HANDE |
| Model | MAN 7.5T | |
| Rear axle | Brand/ | HANDE |
| Model | 16T MAN double reduction driving axle Speed ratio: 4.266 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | （940-850）×300（8） | |
| Suspension | Front and rear multi-leaf spring | |
| Fuel tank | 400L Aluminum alloy | |
| Wheels and tires | 12R22.5 | |
| Brakes | Running brake: Dual circuit compressed air brake | |
| Parking brake: Air discharging with spring control | ||
| Auxiliary brake: Engine exhaust brake | ||
| Cabin | X3000 extended high top cab with top side air deflector, air master seat, four point air suspension, electric heated rearview mirror, single cooling air conditioning, electric window rocking machine, electric flipping, fiberglass bumper, three-level boarding pedal, central locking (with remote control), multifunctional steering wheel, ordinary air filter, ordinary exhaust, water tank protective grille, JOST 50 saddle, three section integral mudguard, 165Ah maintenance free battery, with circular curtain, sleeper curtain, with rear window, widened sleeper, SHACMAN logo, full English logo, gold logo, iron air storage cylinder, flat installation plate, sunken tail beam, saddle front and rear Adjustable, reverse buzzer, transmission telescopic shaft control, 2 remote keys, Jack Sail compressor, 32T jack | |
* Description:
1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 24 months from the date of bill of lading.
