Driving type
6x4
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Driving type
6x4
Wheelbase(mm)
5775+1400
Max. Speed/(km/h)
70km/h

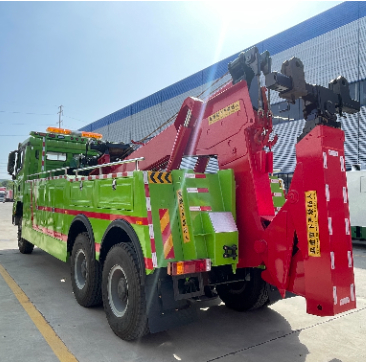

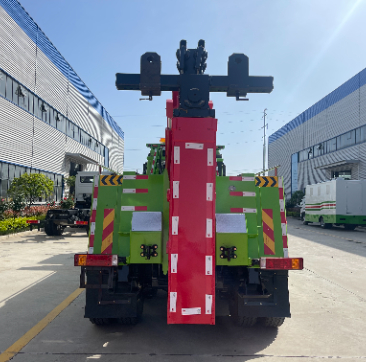

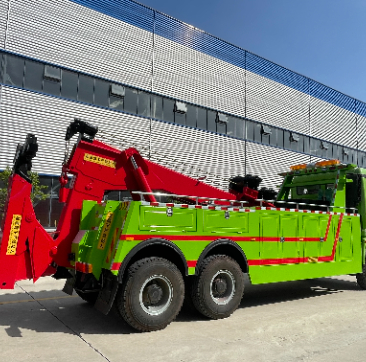

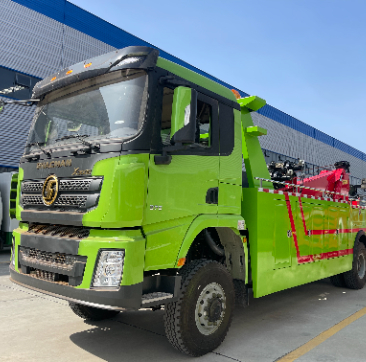

PRODUCT DETAILS
| MODEL | SX5255JSQ6R584 | |
| Driver position | Left Hand/Right Hand | |
| Driving type | 6*4 | |
| Wheelbase(mm) | 5775+1400 | |
| Max. Speed(km/h) | 75km/h | |
| Engine | Brand | WEICHAI |
| Model | WP10.340E22 | |
| Emission Standard | EURO II | |
| Rated output power（PS） | 250KW/340HP | |
| Displacement(L) | 9.726L | |
| Transmission | Brand | FAST |
| Model | RTD-11509C+QH50 | |
| Front axle | Brand | HANDE |
| Model | MAN 7.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double reduction driving axle Speed ratio ：4.769 | |
| Clutch | ￠430 diaphragm clutch￠430 | |
| Steering | ZF technology/ ZF | |
| Frame | 850x300(8+5+8) | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding | |
| Fuel tank | 300LAluminum alloy fuel tank | |
| Wheels and tires | 12.00R20 12+1 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Cabin | Hydraulic main seat, four-point hydraulic suspension cab, with sunshade, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary center air filter, metal bumper, hinged car pedal, daytime running lights, 165Ah maintenance-free battery, spare tire rack, SHACMAN logo, full English logo, remote throttle controller shipped with the car (only electronically controlled engine) | |
| Upbody | 25-ton conjoined one for one, split trunk, cab with front counterweight, support arm, vertical arm with reinforcing plates on both sides, 2 100KN winches (with 40-meter wire rope), 1 pair of U-shaped tire racks, 5 pairs of forks, 1 pair of forks, 2 chain hooks, 1 set of auxiliary brake trachea.Naval combat power cylinder, Hefei Wanli Hydraulic Pump, Italy Hyde hydraulic valve, box electrophoresis | |
RELATED PRODUCTS
SHACMAN F3000 6X4 Compressed garbage truck
SHACMAN F3000 4X2 Oil Tank Truck
SHACMAN L3000 4x2 Watering truck

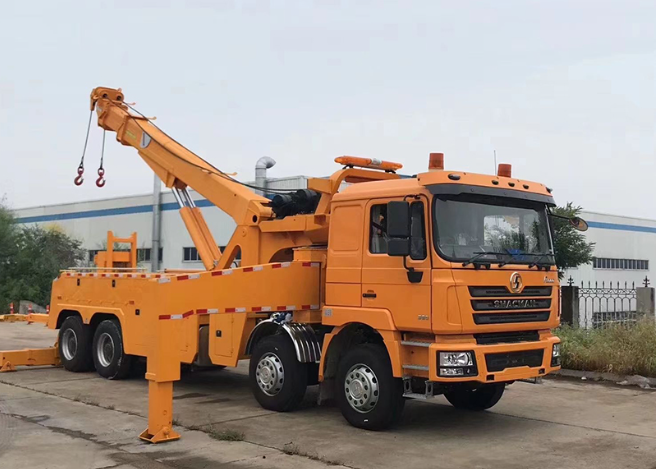

SHACMAN F3000 8X4 Wrecker
SHACMAN H3000 6X4 Water Transport Truck

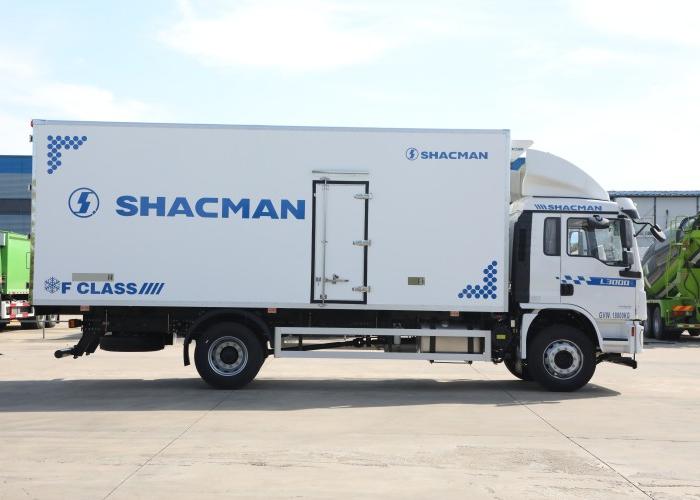

SHACMAN L3000 4x2 Refrigerated Truck
