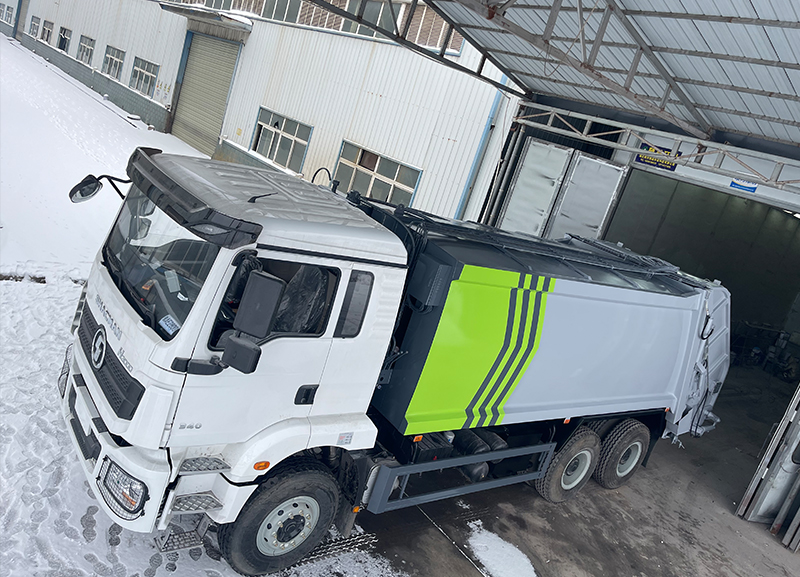

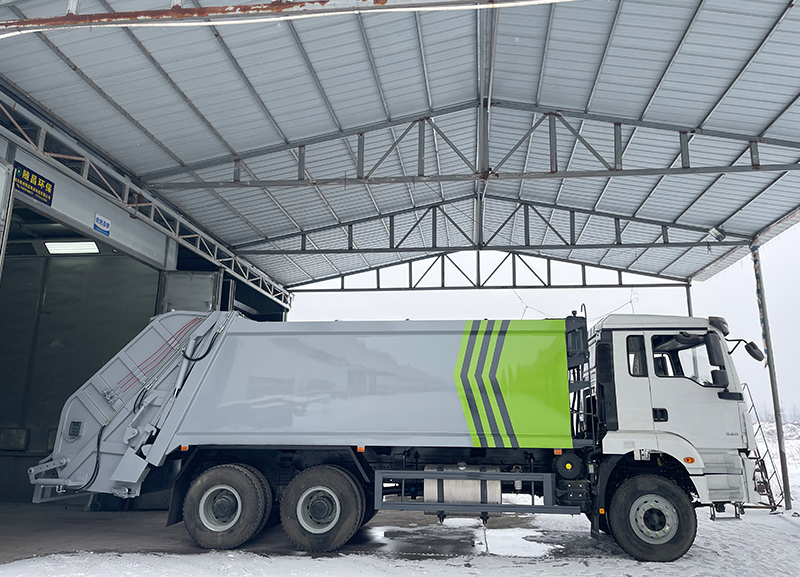

SHACMAN H3000 6X4 Garbage Truck

Driving type

6*4

Wheelbase(mm)

4375+1400

Max. Speed/(km/h)

80km/h

Usage Scenario

Engineering construction, Logistics transportation

INQUIRY NOW

MAIN PARAMETER

MODEL		SX5255ZYSMR434
Driver position		Left Hand
Driving type		6*4
Wheelbase/(mm)		4375+1400
Max. Speed/(km/h)		80km/h
Engine	Brand	WEICHAI
	Model	WP10.340E22
	Emission Standard	EURO 2
	Rated output power/（PS）	340
	Displacement(L)/	9.726L
Transmission	Brand	FAST
	Model	RTD-11509C+QH50
Front axle	Brand	HANDE
	Model	MAN 7.5T
Rear axle	Brand	HANDE
	Model	13T MAN double reduction driving axle Speed ratio: 4.769
Clutch		￠430 diaphragm clutch
Steering		ZF technology
Frame		850x300(8+5)
Suspension		Front and rear multi-leaf spring two main flims+two horse riding
Fuel tank		400L Aluminum alloy
Wheels and tires		12.00R20
Brakes		Running brake: Dual circuit compressed air brake
		Parking brake: Air discharging with spring control
		Auxiliary brake: Engine exhaust brake
Cabin
		X3000 medium length flat top cab without roof deflector, hydraulic main seat, four point hydraulic suspension, ordinary rearview mirror, electrically controlled automatic climate control, manual window shaker, manual flipping, metal bumper with light protection net, three-level boarding pedal, central controlLock (with remote control), oil bath air filter, regular exhaust, water tank protection grille, oil pan protection grille, tail light protection grille, 180Ah maintenance free battery, SHACMAN Telematics (without screen), 2 hazard warning lights, SHACMAN logo, full French logo, installation of a long-lasting coarse filter, iron air reservoir, nut protective cap, TR 668 for front wheel, TR 918 for rear wheel and spare tire, reverse buzzer,

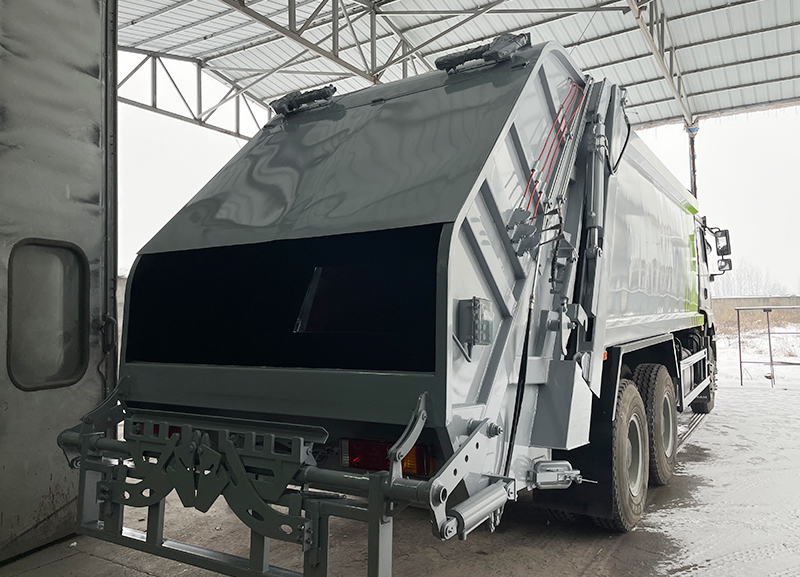

Upbody		Top configuration: The volume of the box is 18 cubic meters, the national standard Q345 carbon steel, the thickness is 5mm, the curved box, the high-strength material has five sides and five bottoms, the box is sandblasted, the new CAN bus control system, with cab operation and wireless remote control, with back pressure valve, with sewage tank, Zhongmei multi-way valve, Changyuan double pump, Neptune hydraulic cylinder, movable ladder, the rest of the standard configuration.The loading cycle time is ≤25S; the garbage discharge time is≤25S; the packing lifting angle is ≥95°, and the compression ratio is 1/3-1/2.

* Description:

1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 60 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
