Driving type
8*4
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Driving type
8*4
Wheelbase(mm)
2100+4575+1400
Max. Speed/(km/h)
90km/h
Usage Scenario
Engineering construction, Logistics transportation
MAIN PARAMETER
| MODEL | SX5315TQZDT456 | |
| Driver position | Left Hand | |
| Driving type | 8*4 | |
| Wheelbase/(mm) | 2100+4575+1400 | |
| Max. Speed/(km/h) | 90km/h | |
Engine
| Brand | WEICHAI |
| Model | WP10.380E22 | |
| Emission Standard | EURO II | |
| Rated output power/（PS） | 279KW/380HP | |
| Displacement(L) | 9.726L | |
Transmission
| Brand | FAST |
| Model | 10JSD180+QH50 | |
| Front axle | Brand | HANDE |
| Model | MAN 9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double reduction driving axle Speed ratio: 5.262 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300（8+5+8） | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding | |
| Fuel tank | 300L Aluminum fuel tank | |
| Wheels and tires | 12.00R20 12+1 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Cabin | Hydraulic main seat, four point hydraulic suspension cab, with sunshade, electrically controlled automatic temperature control air conditioning, electric window shaking machine, manual flipping, ordinary center air filter, metal bumper, hinged boarding pedal, 165Ah maintenance free battery, spare tire rack, SHACMAN logo, all English logo, remote throttle controller shipped with the vehicle (only for electronic controlled engines) | |

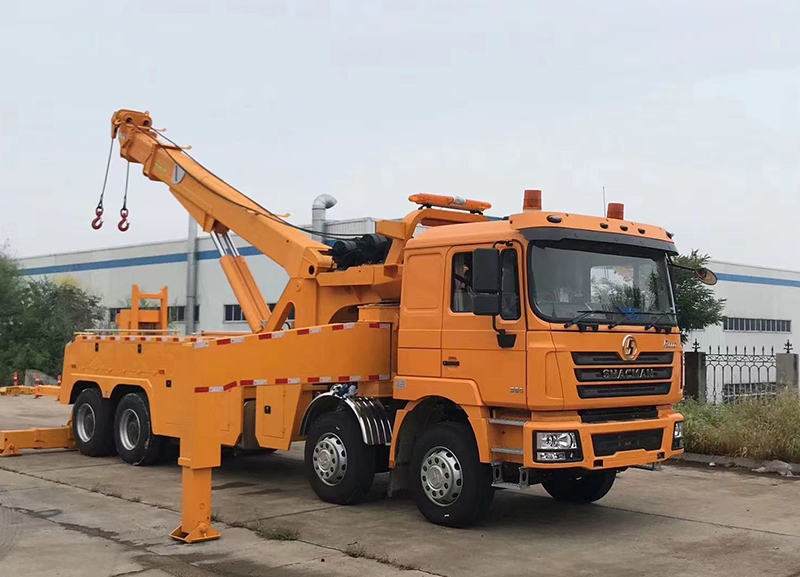

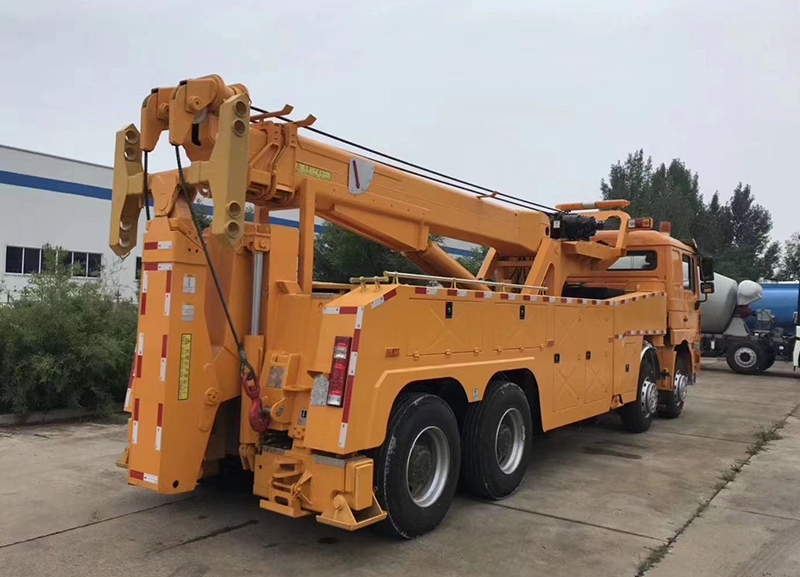

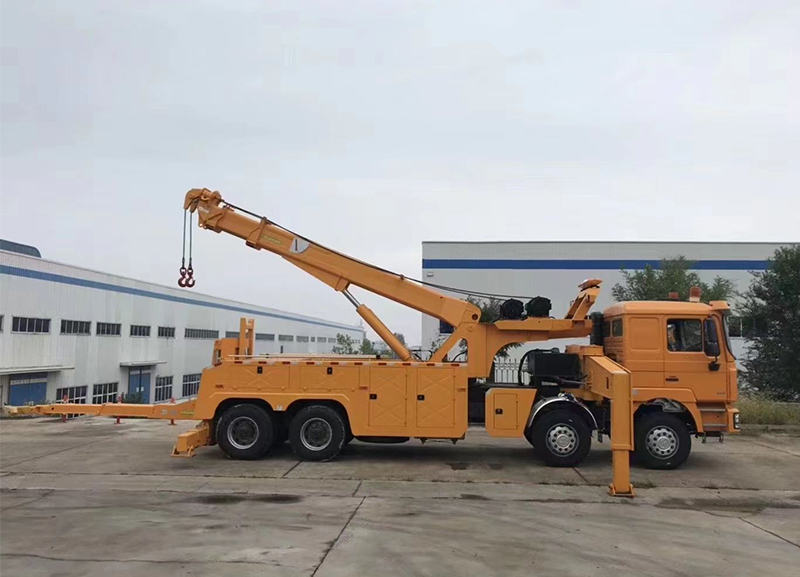

| Upbody | 25T20D upper installation, combined upper installation, imported valve, two section hexagonal lifting arm, three section supporting arm, split carriage, dual side linkage operation device, two ten ton hydraulic winches, 45m steel wire rope, diameter 18mm, equipped with four sets of steel forks, one set of towing fork sleeve, one set of steel plate lifting ear towing fork, one set of tire holding device, one long row engineering alarm light, one set of auxiliary light, one set of auxiliary air pipe assembly, and two binding chains | |
* Description:
1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 24 months from the date of bill of lading.
