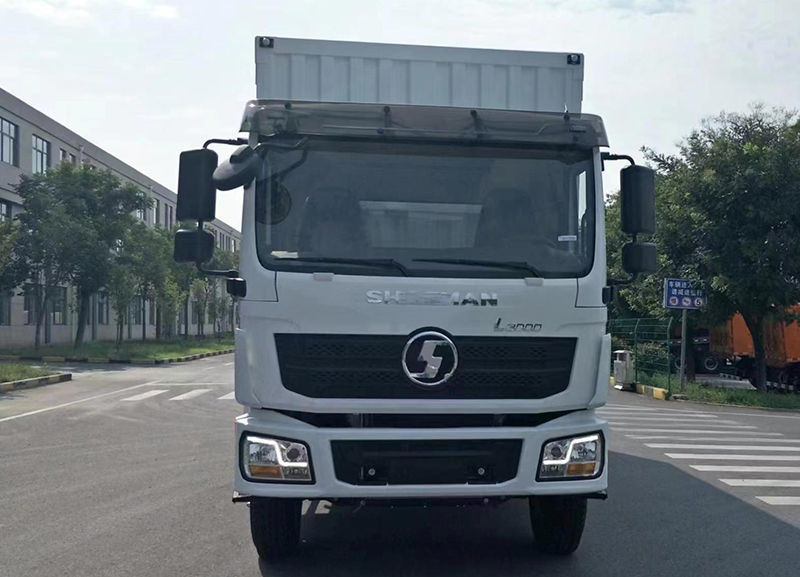

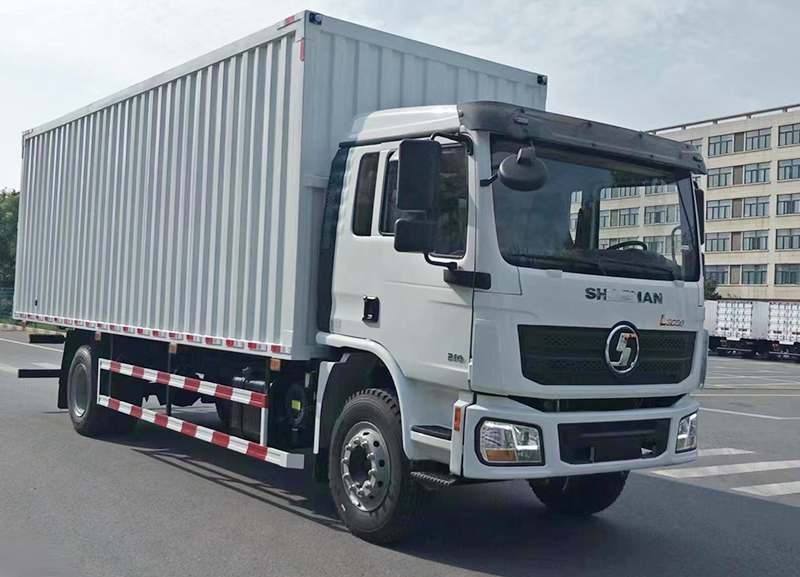

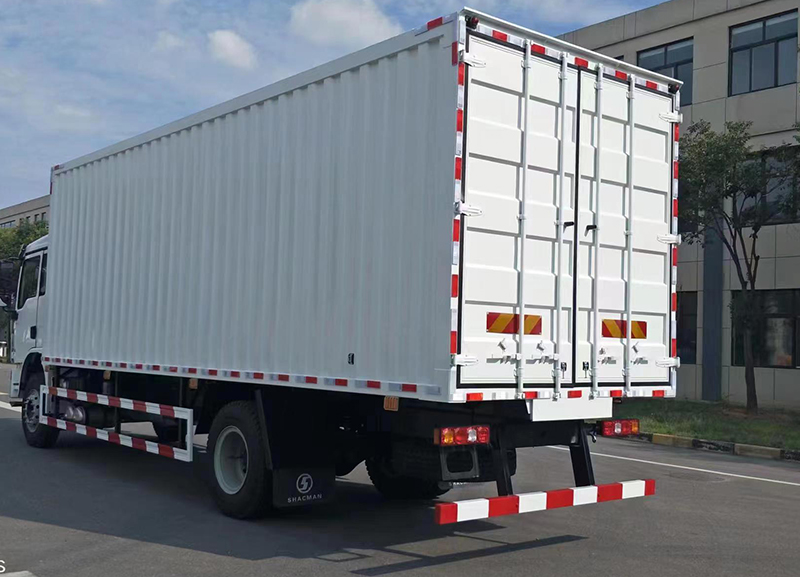

SHACMAN L3000 4X2 Truck

Driving type

4*2

Wheelbase(mm)

5000

Max. Speed/(km/h)

75km/h

Usage Scenario

Engineering construction, Logistics transportation

INQUIRY NOW

MAIN PARAMETER

MODEL		SX11858J501
Driver position		Right Hand
Driving type		4*2
Wheelbase/(mm)		5000
Max. Speed/(km/h)		75km/h
Engine	Brand	WEICHAI
	Model	WP6.210E32
	Emission Standard	EURO III
	Rated output power/（PS）	154KW/210HP
	Displacement(L)	6.75L
Transmission	Brand	FAST
	Model	8JS85TM
Front axle	Brand	HANDE
	Model	MAN 4.8T
Rear axle	Brand	HANDE
	Model	10T MAN Single stage bridge Speed ratio: 4.625
Clutch		￠430 diaphragm clutch
Steering		ZF technology
Frame		870x250(7+4)
Suspension		Front and rear multi-leaf spring
Fuel tank		200L Aluminum alloy
Wheels and tires		10R22.5
Brakes		Running brake:Dual circuit compressed air brake
		Parking brake:Air discharging with spring control
		Auxiliary brake:Engine exhaust brake
Cabin		L3000 cab without air deflector, hydraulic main seat, front fixed and rear hydraulic suspension, electric heated rearview mirror, electric air conditioning, electric window rocking machine (March motor), manual flipping, L3000 bumper, two-stage pedals, central locking (two remote controls), ordinary side air filter, ordinary exhaust, water tank protection grille, tail light protection grille, 135Ah maintenance free battery, with a third seat, reserved power take-off rocker switch, wiring harness and interface Sunshade light yellow, one LED hazard warning light, SHACMAN logo, full English logo, chrome plated horsepower badge on both sides of the doors, aluminum alloy air reservoir, reverse buzzer, spare tire rack, parking wedge, soft shaft control, anti-theft of fuel tank cap, anti-theft of battery compartment, LED tail lights, LED daytime running lights, two mechanical keys, and step lights
Upbody		650024502450(mm) 31.5

* Description:

1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
