Driving type
6*4
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Driving type
6*4
Wheelbase(mm)
3975+1400
Max. Speed/(km/h)
Max. Speed
Usage Scenario
Engineering construction, Logistics transportation
PRODUCT DETAILS

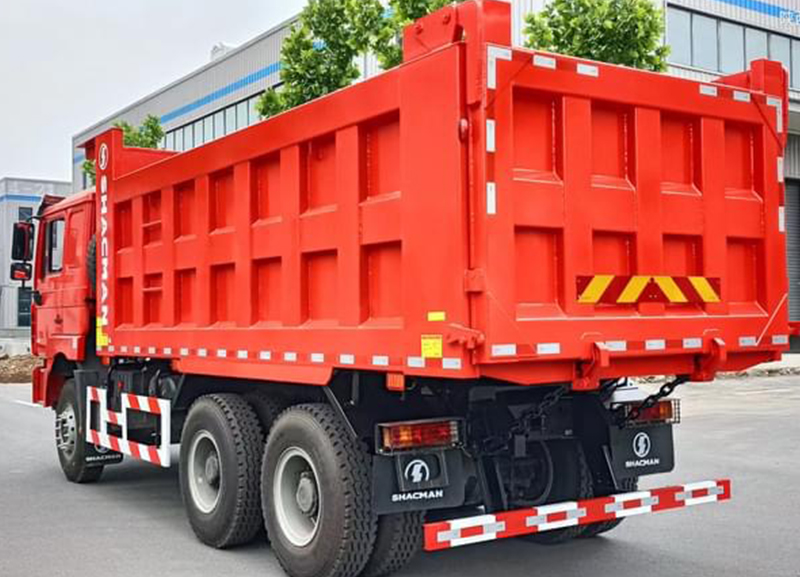

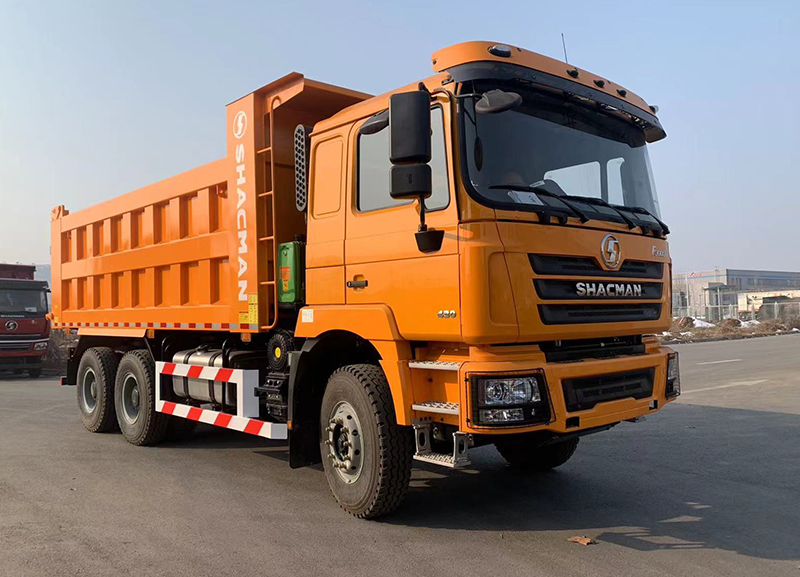

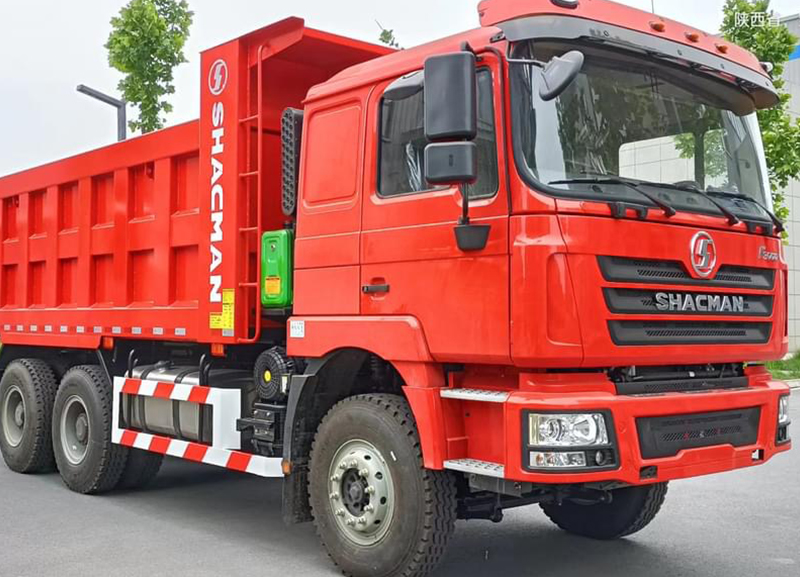

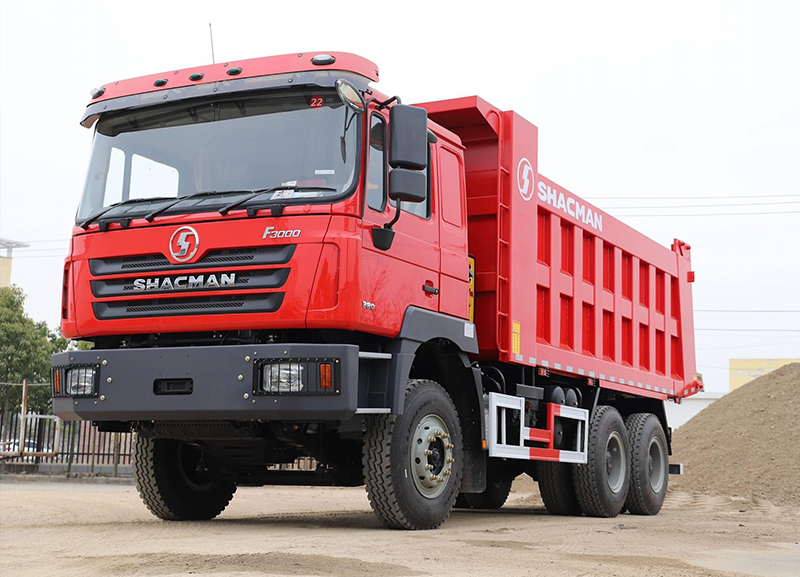

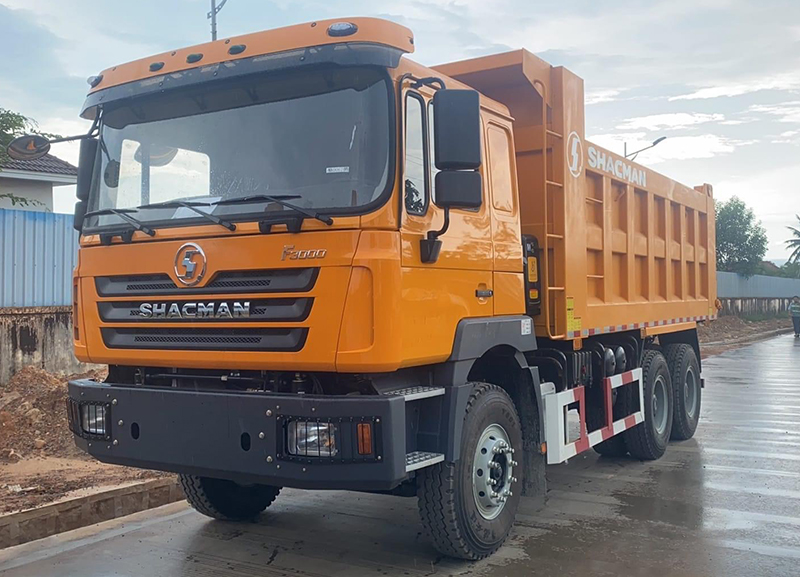

The Shacman F3000 6x4 Dump Truck is engineered for heavy-duty operations in construction, mining, and infrastructure projects. Featuring a robust structure, high-performance engine, and fuel-efficient technology, it ensures maximum productivity while keeping operational costs low.
Shacman dump trucks are trusted in Southeast Asia, Africa, the Middle East, and South America, known for their durability, efficiency, and affordability. With a comprehensive after-sales support network, we ensure spare parts and maintenance services are readily available.
Features
1. Powerful Engine for Superior Performance
Weichai WP10.380E22 Engine – 380 HP output, Euro II/III emission standard, delivering high power with fuel efficiency.
FAST 10-speed transmission – Smooth and responsive gear shifting for maximum control.
Strong rear axle – Features a 16T HANDE MAN axle with a gear ratio of 5.262, ensuring excellent load capacity.
2. Durable & Heavy-Duty Design
High-strength steel frame – Provides enhanced structural integrity for extreme loads.
Optimized cargo box – 5600 x 2300 x 1500 mm (bottom 8mm, side 6mm) for long-term durability.
Advanced hydraulic lifting system – Ensures fast and efficient unloading.
3. Cost-Effective & Fuel-Efficient
400L fuel tank – Supports long-distance operations without frequent refueling.
Aerodynamic cabin design – Reduces wind resistance and enhances fuel economy.
Low maintenance requirements – Designed for reliability, minimizing downtime and repair costs.
4. Driver Comfort & Safety
Spacious and ergonomic cabin – Equipped with an air suspension driver’s seat for all-day comfort.
Enhanced braking system – Includes ABS and exhaust brakes for improved safety.
LED lighting system – Provides excellent visibility for nighttime operations.
Applications
The Shacman F3000 6x4 Dump Truck is suitable for multiple industries:
Construction & Roadwork – Efficiently transports sand, gravel, and debris.
Mining & Quarrying – Handles heavy loads with ease.
Infrastructure Development – Supports large-scale building projects.
Bulk Material Transport – Designed for efficient hauling over long distances.
MAIN PARAMETER
| MODEL | SX3255DT404 | |
| Driver position | Left Hand | |
| Driving type | 6*4 | |
| Wheelbase(mm) | 3975+1400 | |
| Max. Speed(kmh) | 75kmh | |
Engine
| Brand | WEICHAI |
| Model | WP10.380E22 | |
| Emission Standard | EURO II | |
| Rated output power（PS） | 279KW380HP | |
| Displacement(L) | 9.726L | |
Transmission
| Brand | FAST |
| Model | 12JSD200T-B-+QH50 | |
| Front axle | Brand | HANDE |
| Model | MAN 9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN Speed ratio: 5.262 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology ZF | |
| Frame | 850*300（8+7） | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding bolts | |
| Fuel tank | 400L | |
| Wheels and tires | 12.00R20 10+1 | |
| Brakes | Running brake: Dual circuit compressed air brake | |
| Parking brake: Air discharging with spring control | ||
| Auxiliary brake: Engine exhaust brake | ||
| Cabin | F3000 medium length flat top cab without top air deflector, hydraulic main seat, four point hydraulic suspension, ordinary rearview mirror, electrically controlled automatic constant temperature air conditioning, electric window rocking machine, manual flipping, steel plate bumper with light protection net, two-stage boarding pedal, desert air filter, ordinary exhaust, water tank protection fence, tail light protection fence, 165Ah maintenance free battery, curtains and sleeper blinds, sunshade decorative lights, rear bumper, sound insulation board, SHACMAN logo, full English logo, iron air storage cylinder, wheel rim decorative cover, reverse buzzer, parking wedge, 2KG fire extinguisher, telescopic shaft operation and longitudinal control | |
| Upbody | 5800*2300*1500(mm) | |
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
